Why 4-Wire RTDs Provide the Highest Measurement Accuracy

Resistance Temperature Detectors (RTDs) are widely used in industrial, laboratory, HVAC, energy, pharmaceutical, and scientific applications where accurate and stable temperature measurement is important. However, while the RTD sensing element itself may be highly accurate, the wiring method used to connect the RTD to the measurement instrument can significantly affect overall system accuracy.

RTDs are commonly available in 2-wire, 3-wire, and 4-wire configurations. Of these, 4-wire RTDs provide the highest measurement accuracy because they virtually eliminate errors caused by lead wire resistance.

Understanding RTD Measurements

An RTD measures temperature by correlating resistance to temperature. A common Pt100 RTD has a resistance of 100 Ω at 0 °C, with resistance increasing in a predictable and standardized manner as temperature rises. In comparison, a Pt1000 RTD has a resistance of 1000 Ω at 0 °C., ten times as much.

One important consideration is that RTD resistance changes are relatively small. A Pt100 changes by only about 0.385 Ω per °C. This means even small amounts of unwanted resistance in the measurement circuit can introduce meaningful temperature errors.

In practical installations, additional resistance commonly comes from:

• Long lead wires

• Small gauge conductors

• Terminal connections

• Oxidation or aging of contacts

• Varying ambient temperatures along cable runs

Because the instrument measures total circuit resistance, it cannot inherently distinguish between RTD resistance and wiring resistance unless compensation techniques are used.

Comparison of 2-wire, 3-wire, and 4-wire RTD wiring configurations. 4-wire RTDs use separate excitation and sensing conductors to minimize lead resistance measurement errors.

2-Wire RTDs: Simple but Least Accurate

A 2-wire RTD uses the same two wires both to carry excitation current and measure resistance. This is the simplest and lowest-cost RTD configuration, but it also introduces the largest potential measurement error because the resistance of the lead wires is added directly to the RTD resistance.

For example, because a Pt100 changes by only about 0.385 Ω per °C, just 1 Ω of additional lead resistance can create an error of approximately 2.6 °C.

This error increases further with:

• Longer cable runs

• Smaller wire sizes

• Higher ambient temperatures

• Poor or aging electrical connections

2-wire RTDs are still useful in applications where:

• Cable runs are short

• Accuracy requirements are moderate

• Cost sensitivity is important

• Small offsets are acceptable

Typical applications include:

• Basic HVAC monitoring

• General industrial monitoring

• Simple control systems

• Short-distance installations

Approximate Temperature Error Caused by Lead Resistance

Because a Pt1000 sensor has 10× the nominal resistance of a Pt100 sensor, the same amount of lead resistance produces proportionally less temperature error. This is one reason Pt1000 RTDs are often more tolerant of lead wire effects in shorter cable runs and 2-wire installations.

As a real-world example, the following chart illustrates the approximate measurement error that can be introduced by lead wire resistance in a 6 ft (1.8 m) 2-wire RTD probe using various wire gauges. Smaller and more flexible probe cables often use finer conductors, which can increase lead resistance and contribute additional measurement error. Because a 2-wire measurement includes the resistance of both lead wires, the effective conductor length in this example is approximately 12 ft (3.6 m) of copper wire.

As shown above, even relatively short 2-wire probe cables can introduce meaningful measurement error, particularly with Pt100 RTDs and smaller conductor sizes. These types of wiring-related errors help illustrate why 3-wire — and especially 4-wire — RTD measurement techniques are commonly used in higher-accuracy industrial, laboratory, and scientific applications.

3-Wire RTDs: The Industrial Standard

A 3-wire RTD adds a third conductor that allows the measurement instrument to compensate for most lead wire resistance effects. The third wire allows the system to measure and subtract lead resistance from the temperature reading. This greatly improves accuracy compared to a 2-wire system and is why 3-wire RTDs have become the industrial standard for many process and automation applications.

However, 3-wire compensation is based on an important assumption:

• The lead wires must have equal resistance.

In real-world installations, small differences in:

• Wire length

• Wire gauge

• Terminations

• Connector condition

• Ambient conditions

can create imbalance and introduce residual measurement error.

Despite these limitations, 3-wire RTDs provide an excellent balance between accuracy, simplicity, and cost. Typical applications include:

• Process control systems

• Manufacturing equipment

• Chemical plants

• Energy systems

• Industrial automation

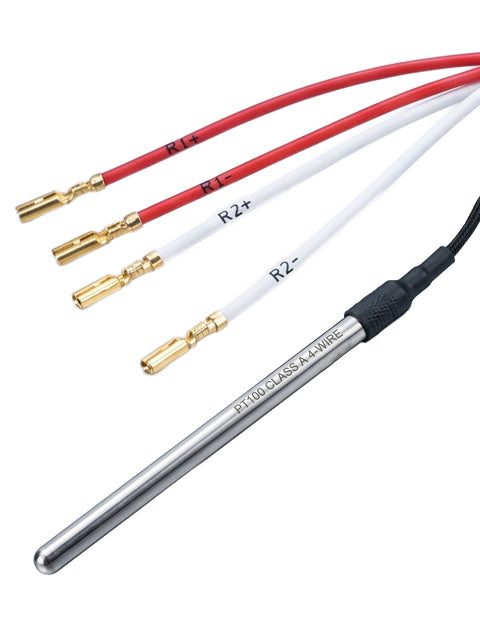

4-Wire RTDs: Maximum Accuracy

A 4-wire RTD uses separate wire pairs for current excitation and voltage measurement. This arrangement is commonly known as a Kelvin connection or four-terminal sensing.

In a 4-wire RTD:

• One wire pair supplies a known excitation current

• A second wire pair measures voltage directly across the RTD element

Typical connection of a 4-wire RTD probe to an ACR SRX10 RTD Logger

Because the voltage sensing leads carry virtually no current, their resistance contributes almost no measurement error. This technique effectively eliminates lead wire resistance from the measurement. As a result, 4-wire RTDs provide:

• The highest measurement accuracy

• Excellent repeatability

• Better long-term stability

• Improved low-temperature accuracy

• Superior performance over long cable distances

Unlike 3-wire systems, 4-wire RTDs also compensate for mismatched lead resistance and contact resistance effects. For this reason, 4-wire RTDs are commonly preferred in:

• Calibration laboratories

• Scientific research

• Pharmaceutical applications

• Environmental chambers

• Validation testing

• Precision industrial monitoring

Why 4-Wire RTDs Matter for High-Resolution Data Loggers

Modern high-resolution RTD data loggers can resolve extremely small resistance changes. As measurement resolution increases, small wiring-related errors that might once have been insignificant become increasingly measurable.

A 4-wire RTD configuration allows precision instruments such as the SRX10 RTD Data Logger to minimize external wiring effects and fully utilize the performance capability of the measurement system.

This becomes especially important when:

• Measuring small temperature differentials

• Using long cable runs

• Logging data over extended periods

• Comparing channels against each other

• Performing validation or compliance testing

• Monitoring highly stable processes

Is a 4-Wire RTD Always Necessary?

Not necessarily. For many industrial applications, a properly installed 3-wire RTD provides excellent performance and more than sufficient accuracy. However, when maximum precision, repeatability, or calibration-grade performance is required, 4-wire RTDs are generally the preferred solution.

As measurement systems become more accurate and higher in resolution, minimizing wiring-induced errors becomes increasingly important.

Summary

RTD wiring configuration has a direct impact on measurement accuracy.

• 2-wire RTDs are simple and economical but include lead resistance errors

• 3-wire RTDs compensate for most lead resistance effects and are the industrial standard

• 4-wire RTDs provide the highest accuracy by virtually eliminating lead wire resistance errors through Kelvin measurement techniques

For demanding temperature measurement applications and high-resolution data acquisition systems, 4-wire RTDs provide the best overall measurement performance.
