Event-Based Voltage Monitoring: A Practical First Step in Power Quality Troubleshooting
Power-related problems are often some of the most frustrating issues to diagnose in electrical systems. Equipment may reset unexpectedly, control systems may fault without obvious cause, or users may report intermittent issues that are difficult — or impossible — to reproduce during a site visit.
In many cases, the underlying question is deceptively simple:
- Is something actually happening on the electrical supply?
Answering that question effectively often requires evidence. This is where event-based voltage monitoring plays an important role in practical power quality troubleshooting.
Power quality in theory vs. power quality in practice
From an engineering perspective, power quality covers a wide range of phenomena, including voltage sags, surges, interruptions, transients, frequency variations, harmonics, and waveform distortion. Full power quality analyzers are designed to capture these parameters in depth, often recording continuous waveforms and calculating detailed metrics.
In practice, however, not every investigation requires — or justifies — that level of complexity.
Many real-world power complaints revolve around intermittent events, such as:
-
Brief voltage sags affecting sensitive equipment
-
Short outages or momentary interruptions
-
Transient disturbances that occur outside normal working hours
-
Suspected frequency anomalies in isolated or weak grids
In these situations, the immediate need is not exhaustive waveform analysis — it is confirmation.
Two complementary approaches to investigating power disturbances
Continuous waveform power quality analysis
Full power quality analyzers excel when detailed root-cause analysis is required. They can capture high-resolution voltage and current waveforms, calculate harmonics and distortion, and support standards-based reporting. These tools are invaluable in complex investigations, forensic analysis, and compliance testing.
However, they also typically involve:
-
More complex setup
-
External sensors and connections
-
Higher cost
-
Shorter deployment durations
They are often deployed after a problem has already been confirmed.
Event-based voltage monitoring
Event-based voltage monitors take a different approach. Rather than continuously recording waveforms, they focus on detecting and time-stamping electrical events based on user-defined thresholds.
This approach is well suited for:
-
Long-term deployment over days or weeks
-
Capturing low-frequency but impactful events
-
Correlating disturbances with equipment behavior or user complaints
-
Determining whether a deeper investigation is warranted
By design, event-based monitors trade waveform detail for simplicity and robustness.
Where event-based monitoring adds the most value
In many troubleshooting scenarios, the first challenge is not understanding why something happened — it is proving that it happened at all.
Event-based voltage monitoring is particularly useful for:
-
Verifying suspected issues
When users report intermittent problems, an event log provides objective data to support or refute those observations. -
Documenting disturbances
Time-stamped records allow events to be correlated with maintenance logs, alarms, or equipment resets. -
Supporting decision-making
Captured events can help justify escalation to more advanced diagnostics or infrastructure changes. -
Reducing diagnostic overhead
Simple deployment allows monitoring to begin immediately, without extensive preparation or system disruption.
An example of an event-based approach: PowerWatch®

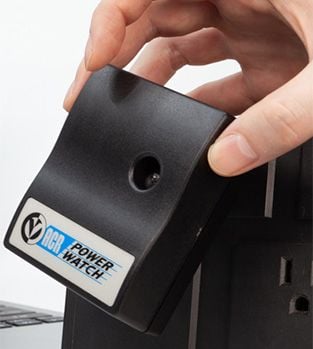

Devices such as the ACR PowerWatch® voltage disturbance recorder are designed specifically for this type of event-based monitoring.
PowerWatch records time-stamped voltage disturbances — including sags, surges, outages, impulses, and frequency variations — in single-phase electrical systems. Rather than continuous waveform capture, it relies on threshold-based event detection, allowing it to focus on meaningful disturbances without generating large volumes of data.
Because it plugs directly into the monitored circuit and operates with minimal setup, PowerWatch is often used as a first diagnostic step when power-related issues are suspected but not yet confirmed.
What event-based monitoring does — and does not — provide
It is important to be clear about expectations.
Event-based voltage monitors are not intended to replace full power quality analyzers. They do not measure harmonics, calculate total harmonic distortion (THD), or perform standards-based compliance testing. They also do not provide continuous waveform records.
Instead, they are designed to answer a more fundamental question:
- Are voltage-related events occurring, and when?
When the answer is yes, the data collected can guide next steps with confidence. When the answer is no, unnecessary escalation can often be avoided.
A practical progression for power quality troubleshooting
Effective power quality troubleshooting often follows a staged approach:
-
Confirm whether disturbances are occurring
Event-based monitoring provides objective evidence. -
Correlate events with observed problems
Time-stamped data supports investigation and discussion. -
Escalate only when necessary
Deploy advanced instrumentation when deeper analysis is justified.
This progression balances practicality, cost, and technical rigor — and helps ensure the right tools are used at the right time.
Final thoughts
Power-related problems do not always require immediate deep analysis. In many cases, the most effective first step is to deploy a simple, reliable tool that can quietly observe, record, and report meaningful electrical events over time.
Event-based voltage monitoring fulfills that role by providing clarity early in the diagnostic process — helping teams move from suspicion to evidence, and from evidence to informed action.
