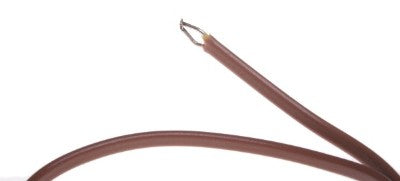

Type K Thermocouple – Welded Tip, 20 AWG, Teflon (PTFE) Insulated, 12" (30 cm)

Supports Type K alloy range up to 1250 °C; PTFE jacket limits safe operation to 250 °C (480 °F).

Key Features

  • Welded tip K-type thermocouple, 20 AWG
  • Teflon (PTFE) insulated jacket
  • 12" (30 cm) length
  • Accuracy per ANSI/IEC Type K standard limits: ±2.2 °C or ±0.75% of reading
  • Thermocouple Alloy Range (Type K standard): –200 °C to +1250 °C (–328 °F to +2282 °F)
  • Recommended range (PTFE): –50 °C to +250 °C (–55 °F to +480 °F)

This probe is compatible with the ACR SRX6 Thermocouple Logger for full thermocouple logging capabilities.

$16.00 USD

Guaranteed safe checkout

american expressdiners clubdiscovermasterpaypalvisa
Description Specifications Software Q&A

Welded-tip Type K thermocouple (20 AWG) with duplex-insulated PTFE jacket, length 12″ (30 cm). Ideal for general-purpose temperature sensing in environments up to 250 °C, where the alloy's full capability enables measurements up to 1250 °C.

  • Thermocouple Alloy Range: –200 °C to +1250 °C (–328 °F to +2282 °F)
  • Max Operating Temperature (PTFE): –50 °C to +250 °C (–55 °F to +480 °F)
  • Accuracy: ANSI/IEC Type K Standard Limits of Error — ±2.2 °C or ±0.75% of reading
  • Compatible with most Type K instrumentation, including the SRX6 Thermocouple Data Logger.

Specifications

Range -100° to 1150°C (-145° to 2100°F).
Size 12″ length.

Software

ACR software tools are intuitive and flexible, allowing you to easily configure ACR data loggers to collect the data you need. Once downloaded, your data is displayed in presentation-quality graphs and can be converted into popular formats for use with spreadsheet programs, document editors, and other third-party applications.
