Evaluating Panel Capacity for Modern Infrastructure

When adding major electrical loads—such as EV charging infrastructure, commercial HVAC retrofits, or heavy machinery—determining available panel capacity is critical. Overestimating demand often leads engineers and facility managers to prescribe costly, unnecessary service upgrades or transformer replacements. A more efficient, data-driven approach relies on actual measured load data. Under electrical codes across North America (primarily U.S. NEC 220.87, alongside Canadian CEC Rule 8-106), a continuous 30-day electrical load study serves as a recognized alternative when 12 months of utility billing data is unavailable or incomplete.

Real-World Field Constraints

In practice, load studies are often conducted under strict operational and physical constraints:

• Space & Access Limits: Electrical panels are frequently crowded, compact, and located in areas with restricted maintenance access.
• Zero Downtime Requirements: Facility shutdowns are rarely permitted just to deploy monitoring hardware.
• Voltage & Power Restrictions: Live voltage taps are undesirable or prohibited, and convenient power outlets inside the enclosure rarely exist.
• Safety & Compliance Concerns: Running power cords or lead wires outside the cabinet introduces trip hazards, visibility issues, and non-compliance with enclosure safety standards.
• Extended Deployments: Equipment must remain deployed and securely recording for weeks or months at a time.
• Variable Amperage Ranges: Monitored circuits range anywhere from modest single-phase 20 A lighting circuits to three-phase industrial feeds exceeding 1,000 A.

Regardless of the facility size, successful data logging requires a fully self-contained solution with a compact footprint, long battery life, minimal operational disruption, and reliable data export for engineering analysis.

Core Code & Data Requirements

To satisfy code requirements and inspector expectations, load studies must capture data according to specific baseline standards:

• Continuous Duration: Data must be captured across 30 continuous days under representative, normal operating conditions.
• Averaged Demand Intervals: Readings are logged as the maximum average current over 15-minute intervals—matching standard utility demand profiling.
• Simultaneous Phase Coverage: All ungrounded conductors (Phase A, B, and C in three-phase systems) must be monitored simultaneously to account for potential phase imbalances.
• Evaluating Available Capacity: Total required capacity is calculated using the baseline peak reading plus a standard safety factor:


  Total Load = (Recorded Peak Amps x 1.25) + Proposed Amps

Field Logistics: Why Current-Only Logging Outperforms Power Quality Meters

Traditionally, load studies involved connecting active voltage leads alongside current transformers (CTs). However, tapping into live voltage inside an energized panel creates significant operational challenges:

• Safety Standard Overheads (NFPA 70E / CSA Z462): Live voltage connections trigger strict arc-flash personal protective equipment (PPE) requirements, Energized Electrical Work Permits (EEWP), and two-person electrician crews.
• OSHA "Dead-Front" Compliance: Running voltage wires out of a cabinet prevents doors from closing completely. Leaving panel doors open or unlatched during a month-long test violates workplace enclosure safety rules.

Non-Intrusive Logging Advantages

Current-only monitoring bypasses direct electrical contact entirely:

• Safe Enclosure Latching: Clamp-on current transducers (CTs) measure amperage magnetically. The entire logger sits safely inside the cabinet, allowing the panel door to be shut, locked, and safely left unattended for 30 days.
• Zero Direct Wiring Contact: No piercing of insulation, no live busbar clips, and no disruption to facility operations during setup.
• Reduced Labor Friction: Avoids complex high-voltage permits and reduces unnecessary technician overhead.

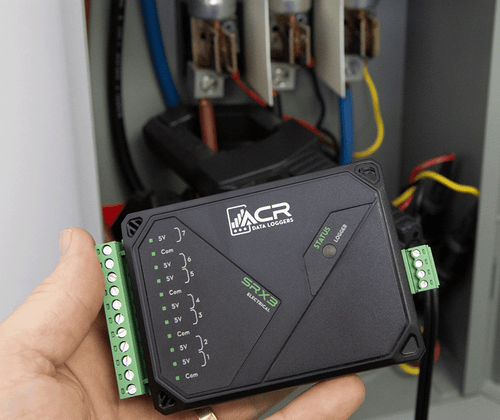

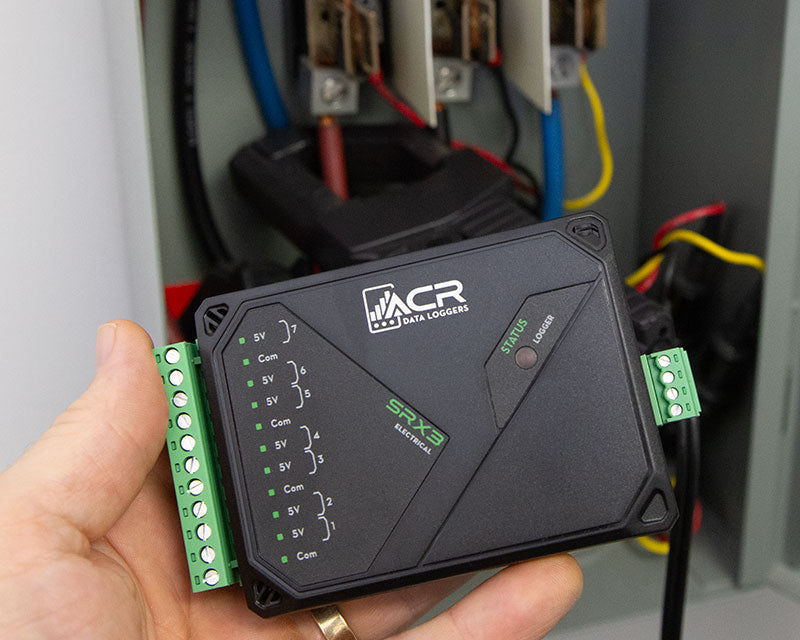

Purpose-Built Deployment with the ACR SRX3

When moving from theory to field execution, the ACR SRX3 Multi-Channel AC Current Logger is engineered specifically to meet these field constraints and 30-day capacity study requirements:

• Self-Powered & Independent: Powered by an internal 3.6V lithium battery (up to 10-year battery life), eliminating the need for external power outlets or live voltage taps.
• Panel-Internal Form Factor: Compact (4.4" x 2.9" x 1.1") with an integrated magnetic mount, allowing easy attachment directly to interior cabinet walls.
• Automated 15-Minute Demand Sampling: Samples load current continuously and averages data into 15-minute intervals, aligning directly with code demand reporting standards.
• Multi-Phase Verification: Available in 3-channel and 7-channel options to capture all phases simultaneously.
• Streamlined Reporting: Data exports seamlessly via USB using TrendReader® TRX software into time-series graphs and CSV/Excel tables ready for engineering review and permit submissions.

Real-World Field Applications

The flexibility of non-intrusive current logging allows it to solve diverse engineering challenges across various deployment durations and amperage scale requirements:

Long-Term Energy Savings Verification

Utilities often perform long-term load studies to verify energy savings following major retrofits (such as LED lighting upgrades) and validate rebate projections. To confirm real-world load reductions on tight, single-phase 20 A lighting circuits, SRX3 loggers are deployed inside customer panels for 12 months or more. Because split-core CTs draw signal strictly from the conductor’s magnetic field and the logger runs on an internal battery, technicians capture full pre- and post-retrofit load profiles without voltage taps, external power connections, or panel shutdowns.

High-Amperage Capacity Planning & Infrastructure Assessment

Electrical contractors performing commercial and industrial capacity studies routinely use the SRX3 for 30-day monitoring across high-current circuits ranging from 0 to 1,000+ A. By utilizing non-intrusive split-core CTs, contractors eliminate the need for complex setup, live voltage wiring, or facility outages. Once downloaded via TrendReader software, the data provides clear peak demand identification, duty cycle analysis, and exportable CSV datasets for detailed engineering modeling

Quick Execution Workflow

1. Deployment: Clamp non-intrusive CTs around each ungrounded phase. Mount the SRX3 inside the enclosure, set the logging interval to 15-minute averages, and securely lock the deadfront door.
2. Retrieval: After 30 days, download the logged data via USB.
3. Calculation: Locate the maximum 15-minute averaged peak current. Multiply that peak by 1.25 and add the amperage of the planned new load.
4. Documentation: Export TrendReader graphs and CSV summary reports for your permit package or engineering sign-off.
